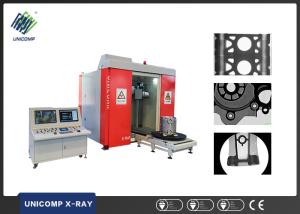

Casting Defects Foreign Material Metal X Ray Detection Machine in Uzbekistan
Unicomp Technology automated x-ray systems inspect steel or aluminum alloy castings expressly for the automotive industry. The automated radioscopic inspection of aluminum die castings can be performed for an audit-based or production-level scale.
Inspection System for Die Casting, Automotive Components, Defense Components, Cultural Assets and Large Products
Appropriate for medium•large size component inspection and detecting surface structure and defects(inside voids and cracks etc).
Due to high-energy, high-power Micro-focus X-ray Open Tube, maintenance cost's reduced significantly and enables long-term use with only replacing consumables.
Customization is available with selecting main parts by customers depends on their needs for size and material.
Features:
●High reliable and long life,low breakdow
●High definition and resolution FPD
●C-arm fixture design enabling five-axis motion detection(optional automatic lift and descend)
●Multi-functional workstation,360°rotation and shift
●User friendly software design for easy interfacing can facilitate,customized software
●High penetration,Voltage up to 225KV,Maximum penetration thickness up to 25mm for "Fe"
●Detection area:ɸ1200*1200mm
●Loading weight:300KG
| System Parameters |
| Dimensions | 3200mm*3873mm*3277mm(L*W*H) |
| Equipment weight | 8.5T |
| Power | 9KW |
| Maximum penetration(AL) | 150mm/25mm |
| Detection range | ɸ1200*1200mm |
| Load weight | 300KG |
| Work environment | 5-40° ≦80﹪HR |
| Install power | three-phase five-wire 380V power supply |
| X-ray leakage dose rate | ≤1μSv/h |
| X-ray Generator |
| Tube voltage | 225kv |
| Power | 800w/1800w |
| Focal size | 0.4mm/1.0mm |
| Detector |
| Imaging field | φ 215mm |
| Resolution | 2.8 LP/mm |
| Detector (FPD Optional) |
| Image area | 250mm x 300mm |
| Pixel matrix | 1792 x 2176 |
| Pixel size | 139μm |
| Frame rate | 9 fps(1x1)30 fps(2 x 2) |
| |
